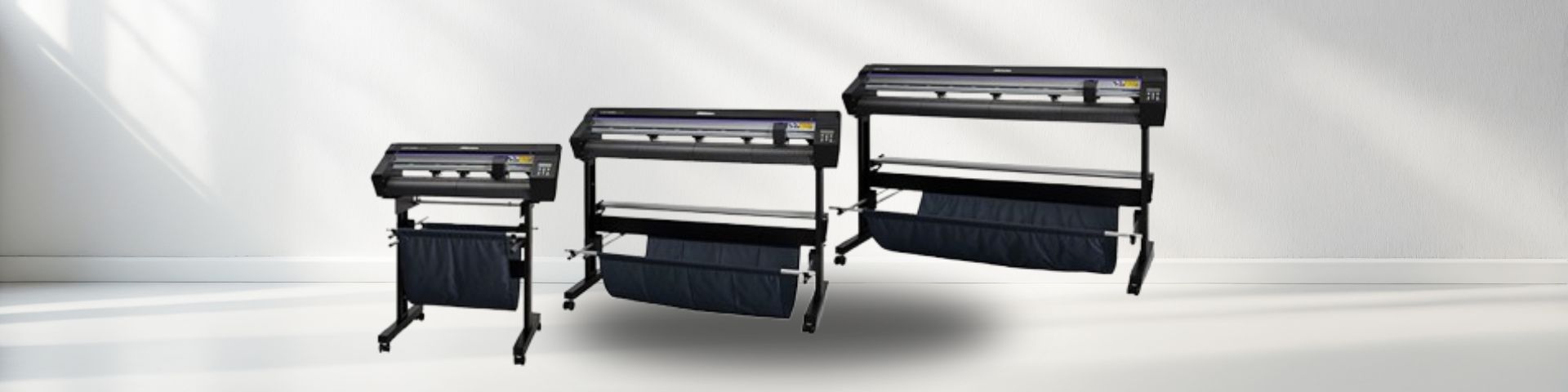

De Mimaki AR Series snijplotters zijn verkrijgbaar in 61 cm (AR-60) en 130 cm (AR-130) breedte en leveren betrouwbare snijprestaties voor textieltransfers, stickers, vinylgraphics en print- & cut-producties. Ideaal voor startende signmakers en creatieve gebruikers die kwaliteit zoeken.
The Mimaki CG-AR Series represents the next generation of cutting plotters, designed to deliver exceptional precision and versatility for professionals in the signage and visual communication industry. With enhanced features, robust performance, and seamless integration capabilities, the CG-AR Series is the ideal solution for businesses seeking efficiency and quality in their cutting operations.
The Mimaki CG-AR Series cutting plotters are engineered to meet the demands of professionals requiring precision, speed, and versatility. Building upon the legacy of Mimaki's cutting technology, the CG-AR Series introduces advanced features that streamline the cutting process and expand creative possibilities.
With a maximum cutting force of 550g, the CG-AR Series can effortlessly handle a variety of materials, from standard vinyl to thicker substrates like cardboard. The adjustable pressure settings ensure optimal cutting performance across different media types.
Achieve faster turnaround times with cutting speeds reaching up to 73 cm/s. The improved speed does not compromise accuracy, making the CG-AR Series suitable for high-volume production environments.
The innovative ID Cut function automates the cutting process by reading barcode data and registration marks. This feature minimizes manual setup, reduces errors, and enhances overall workflow efficiency.
The CG-AR Series supports a broad spectrum of materials, including:
This versatility allows for diverse applications, from signage and decals to packaging prototypes.
Expand your production capabilities with optional tools designed for cardboard cutting, including a sheet table, cutting sheet, heavy paper blade, and creasing tool. These accessories enable the creation of packages up to A3 size, ideal for mock-ups and small-scale packaging runs.
The CG-AR Series comes bundled with:
Additionally, the Windows plotter driver enables direct output from applications like Microsoft Word and Excel.
With multiple interface options, including USB, RS-232C, and Ethernet, the CG-AR Series ensures easy integration into various production environments.
| Specification | CG-60AR | CG-100AR | CG-60AR |
|---|---|---|---|
Acceptable Sheet Width |
90 - 740 mm |
90 - 1,250 mm |
90 - 1,550 mm |
Effective Cutting Area |
606 mm × 51 m |
1,070 mm × 51 m |
1,370 mm × 51 m |
Maximum Cutting Speed |
73 cm/s |
73 cm/s |
73 cm/s |
Maximum Pressure |
550 g |
550 g |
550 g |
Mechanical Resolution |
X |
2.5 μm, Y |
5 μm |
Repeatability |
± 0.2 mm / 2 m |
± 0.2 mm / 2 m |
± 0.2 mm / 2 m |
Interfaces |
USB, RS-232C, Ethernet |
USB, RS-232C, Ethernet |
USB, RS-232C, Ethernet |
Power Consumption |
168W or less |
228W or less |
228W or less |
Dimensions (W×D×H) |
1,010×355×355 mm |
1,510×580×1,160 mm |
1,810×580×1,160 mm |
Weight |
17 kg |
35 kg |
43 kg |
The CG-AR Series is capable of cutting a wide range of materials, including PVC, fluorescent and reflective sheets, rubber sheets, and cardboard (with optional accessories). This versatility makes it suitable for various applications such as signage, decals, and packaging prototypes.
The ID Cut function automates the cutting process by reading barcode data and registration marks, allowing the plotter to accurately align and cut designs without manual intervention. This reduces setup time, minimizes errors, and streamlines the workflow.
Yes, the CG-AR Series is compatible with design software through the FineCut9 plug-in, which integrates with Adobe Illustrator and CorelDRAW. Additionally, the Windows plotter driver allows direct output from applications like Microsoft Word and Excel.
Yes, with optional accessories such as a sheet table, cutting sheet, heavy paper blade, and creasing tool, the CG-AR Series can cut and crease cardboard, enabling the production of packages up to A3 size.
The primary differences lie in the acceptable sheet width and effective cutting area:
All models share the same cutting speed and pressure capabilities.
The CG-AR Series offers a maximum cutting speed of 73 cm/s, enhancing productivity without compromising precision.
With a mechanical resolution of X: 2.5 μm and Y: 5 μm, along with a repeatability of ± 0.2 mm over 2 meters, the CG-AR Series delivers high-precision cutting suitable for detailed designs.
The CG-AR Series supports USB, RS-232C, and Ethernet interfaces, providing flexible connectivity options to suit various production environments.
Regular maintenance of the Mimaki CG-AR Series cutting plotters is essential to ensure optimal performance and longevity. Key maintenance tasks include:
The Mimaki CG-AR Series cutting plotters come with a minimum two-year warranty from the product shipping date. This warranty covers defects in materials and workmanship under normal use. To obtain warranty service, contact the authorized Mimaki distributor or dealer from whom the product was purchased. For more information, visit the Mimaki USA Warranty Information page.
| Feature | CG-60AR | CG-100AR | CG-60AR |
|---|---|---|---|
Acceptable Sheet Width |
90–740 mm |
90–1,250 mm |
90–1,550 mm |
Effective Cutting Area |
606 mm × 51 m |
1,070 mm × 51 m |
1,370 mm × 51 m |
Maximum Cutting Speed |
73 cm/s |
73 cm/s |
73 cm/s |
Maximum Cutting Pressure |
550 g |
550 g |
550 g |
Dimensions (W×D×H) |
1,010×355×355 mm |
1,510×580×1,160 mm |
1,810×580×1,160 mm |
Weight |
17 kg |
35 kg |
43 kg |
Categorie |
Snijplotter |
Breedte |
60, 100, 130 cm |
Rol / Flatbed |
Rolcutter |
Crop mark detectie |
Ja |
Snelheid |
70 m/s |
Overige bijzonderheden |
Hoogwaardige, betaalbare plot oplossing |
