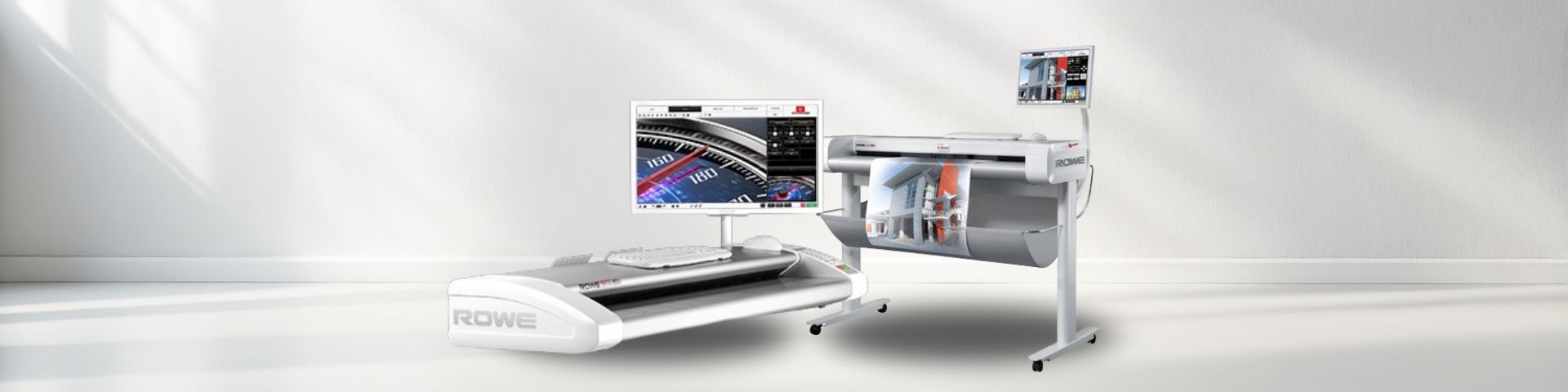

De ROWE Scan 850i Series zijn professionele grootformaat GIS-scanners in formaten van 44 inch (111 cm) tot 60 inch (152,4 cm). Voor het scannen in topkwaliteit van extra brede posters, technische tekeningen en zelfs 3D objecten met de optionele 3D module.
The ROWE Scan 850i is a high‑performance, versatile wide‑format scanner built for demanding environments. With scan widths up to 60″ (≈1524 mm), automatic height adjustment for thick originals, and ROWE’s patented image and document protection technologies, it combines speed, quality and durability for professional large format scanning.
Scan sizes & media thickness:
Resolution & Colour Depth:
Speed & Workflow Features:
Quality & Reliability:
The ROWE Scan 850i is well suited for:
The HA versions of the ROWE Scan 850i allow scanning much thicker originals, up to ~30 mm (≈1.18″), versus about 2 mm for standard versions. This means that for thick media (mounting boards, rigid sign materials, thick maps, overlay boards etc.), the HA models are much safer and more versatile. The HA models include sensors to detect media thickness and an electrically driven lid (or top segment) that adjusts automatically to the correct height to protect the original and ensure proper focus. If your workflow involves thick stock or less flexible originals, the HA is a worthwhile investment.
The throughput depends on several factors: width of model (44″, 55″, 60″), whether scanning colour or monochrome, resolution used, and the computing hardware. For example, the 44″ model achieves ~440 documents per hour at 600×600 dpi in one of the sample benchmark configs. Also, with the SuperSpeed USB 3.0 + RES, data transfers are much faster (up to ~10× depending on configuration versus USB 2.0), reducing delay between scan and post‑processing. If you combine high‑speed scanning with the document improvement features and minimal setup (automatic width detection etc.), the effective throughput can be high.
ROWE Safe Drive technology, hardened scan glass and protective media transport (Safe Guard) help to extend glass life significantly—up to 500% longer than standard scanners without these features. Regular cleaning of glass, avoiding scratch‑causing debris, and ensuring the feed path is free of dirt are best practices. The operating manual provides guidance for cleaning and preventive maintenance. Also, using the auto height adjustment with HA models prevents compression or damage to thick media, further extending life.
Flexible originals like paper, blueprint film, maps, textiles; also rigid or semi‑rigid originals when using HA versions; thick media (up to 30 mm) including boards, overlays, heavily textured material. The ROWE Safe Guard helps with media that are old, torn or wavy; dynamic stitching helps with folds, damage or irregular surfaces. If media are highly reflective or have unusual surface texture, you may need to adjust lighting or post‑scan enhancement.
The ROWE Scan 850i supports standard scanning file formats: TIFF, JPEG, JPEG 2000, PDF, Mult‑page PDF/TIFF, whole set per vendor specifications. Colour depth is up to 48‑bit; greyscale up to 16‑bit. Colour spaces include sRGB, Adobe RGB, Device RGB. If you have special archival or repro requirements (e.g. DICOM, CALS etc.), check with the vendor or support but many formats are supported.
Very feasible: the ROWE Scan 850i works with standard PCs, software (ScanManager, TWAIN support), networks (USB, network, cloud upload), and can be paired with large format printers/plotters (in MFP configurations). Hot‑keys, presets, and software that allows post‑scan edits reduce the need for external tools. Also, the modularity (width upgrades, optional accessories) make it a good fit with changing needs.
The device supports universal‐input power (100‑240 V, 50/60 Hz), has energy saving / sleep modes, uses LED lighting (no long warm‑up), and meets Energy Star / RoHS etc. certifications. This helps reduce operating cost and environmental footprint. Noise and heat output are lower compared to older large‑format scanners.
Because of its large width and height, you’ll need adequate floor space—not just for the scanner body but for feeding/collecting media, operator access, and possibly a stand or table. HA models need enough vertical clearance and safe operation for the height adjustment lid. Also the PC connection and power should be close. It’s recommended to review the dimension tables and allow clearance for maintenance and loading.
The ROWE Scan 850i includes several features to mitigate such problems: Dynamic Stitching corrects sensor data in real time; Safe Guard transport handles fragile / wavy originals; automatic width detection and width recognition help avoid causing further damage; post‑scan document improvement (contrast, brightness, etc.) helps salvage legibility. It doesn’t guarantee all damage can be fully removed, but significantly improves outcome compared to basic scanners.
Total cost includes purchase price, accessories (stands, software, cloud access etc.), maintenance (glass cleaning, possible spare parts), energy use, and operator time. The ROWE Scan 850i aims to reduce hidden costs: less downtime due to durable build, less rework due to better image correction features, faster scan throughput, energy efficiency. For businesses scanning large volumes, the improvements in time and quality often yield return on investment within a reasonable period. For smaller users, selecting the right model (width, HA vs non‑HA) helps avoid over‑paying for unused capability.
Model Widths Available |
44″ (≈1,130 mm), 55″ (≈1,397 mm), 60″ (≈1,524 mm) |
Maximum Original Width |
~63.2″ (≈1,606 mm) for some 55″/60″ models |
Media / Original Thickness |
Up to ~2 mm (≈0.08″) for standard versions; up to 30 mm (≈1.18″) in HA (height adjustment) versions. |
Optical Resolution |
2,400 × 1,200 dpi |
Maximum / Interpolated Resolution |
Up to 9,600 dpi |
Colour Depth |
48‑bit colour; 16‑bit greyscale |
Colour Space Support |
sRGB standard, plus user‑definable (Adobe RGB, Device RGB etc.) |
Interface / Data Transfer |
SuperSpeed USB 3.0 + ROWE RES (lossless compression); USB 2.0 supported |
Scan Speed (200 dpi / 300 dpi etc.) |
Varies by model and colour/mono; sample: ~15 ips mono / colour at 200 dpi for larger widths; documents per hour ~440 at 600×600 dpi for 44″ model. |
Maximum Scan Length |
Essentially unlimited (subject to media and workflow) |
Power / Energy Usage |
External power supply 100‑240 V, 50/60 Hz. Standby / energy saving modes; meets EN / Energy Star etc. |
Certifications |
CE, Energy Star, RoHS, UL / cUL etc. |
